What Is the Difference Between an Upflow and Downflow Furnace? Air Direction Determines Where It Goes

The difference between an upflow and a downflow furnace is the direction air moves through the furnace cabinet. In an upflow furnace, return air enters at the bottom and heated supply air exits at the top — the air moves upward. In a downflow furnace, return air enters at the top and heated supply air exits at the bottom — the air moves downward. A horizontal furnace moves air sideways — return in one end, supply out the other. The furnace’s internal components — the heat exchanger, the burner, the blower, the control board — are identical in all three configurations. Only the orientation and the airflow path differ.

The airflow direction determines where the furnace can be installed. An upflow furnace goes in a basement or a first-floor mechanical closet, where the ductwork runs up through the floors above. A downflow furnace goes in an attic or a second-floor closet, where the ductwork runs down through the ceiling below. A horizontal furnace goes in a crawlspace or a low-clearance attic where there is not enough height for a vertical furnace. The location of the furnace in the house determines the airflow direction. The airflow direction determines which furnace type you buy.

Upflow vs. Downflow vs. Horizontal: Quick Reference

Upflow Furnace: The Basement Standard

The upflow furnace is the most common configuration in the United States because most furnaces are installed in basements. Cold return air enters the bottom of the furnace, passes through the filter, is pulled through the blower, is pushed upward across the heat exchanger, and exits through the top into the supply ductwork that runs up through the floors above. Gravity assists the airflow — cold air naturally sinks into the basement return, and the warm air naturally rises into the supply ducts.

An upflow furnace is easily identified by the return air opening at the bottom and the supply air opening at the top. The blower is below the heat exchanger, pushing air upward. The burner is above the heat exchanger for gas furnaces — or below the heat exchanger for oil furnaces — but the airflow path is always bottom to top.

Downflow Furnace: The Attic and Closet Solution

A downflow furnace — also called a counterflow furnace — moves air in the opposite direction: return air enters the top, and heated supply air exits the bottom. This is the standard configuration for attic installations, where the ductwork runs down through the ceiling into the rooms below, and for second-floor mechanical closets where the furnace sits above the ductwork.

The downflow orientation creates one design challenge that the upflow does not: condensate management. In a condensing furnace installed in an attic, the condensate drain from the secondary heat exchanger must flow downhill to a drain or a pump, and the entire furnace must be protected from freezing if the attic is unconditioned. A downflow condensing furnace in an unconditioned attic must have heat tracing on the condensate drain line to prevent freezing, or the attic must be conditioned. A frozen condensate line in an attic shuts down the furnace on the coldest day of the year.

Horizontal Furnace: The Crawlspace and Low-Attic Option

A horizontal furnace is an upflow or downflow furnace turned on its side. The furnace is installed lying down, with the return air entering one end and the supply air exiting the other. A horizontal furnace is used when there is not enough vertical clearance for an upright furnace — typically in a crawlspace, a low attic with a shallow roof pitch, or a basement with low ceiling height.

Horizontal furnaces require more floor space than vertical furnaces — roughly twice the footprint — but less headroom. The condensate drain on a horizontal condensing furnace must be reconfigured for the horizontal orientation, with the internal condensate trap relocated or supplemented with an external trap to maintain the correct water seal.

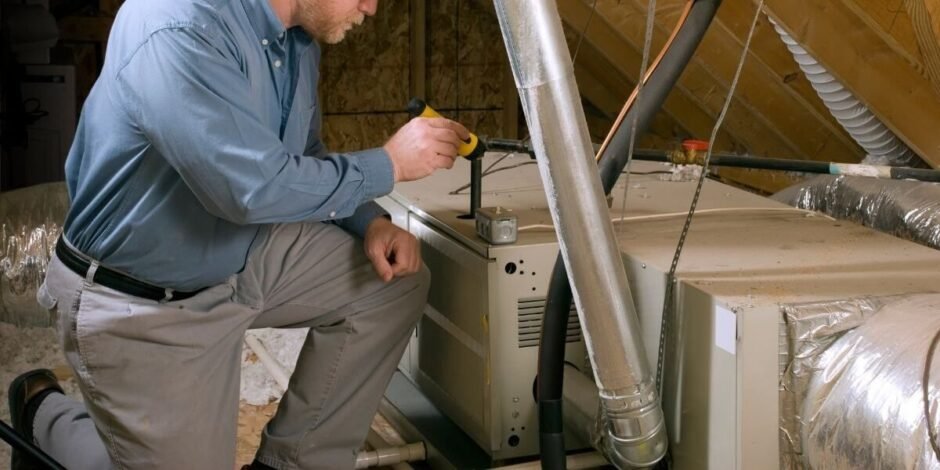

Multi-positional furnaces: one furnace, all three orientations. Many modern furnaces are multi-positional — a single furnace model that can be installed in upflow, downflow, left-hand horizontal, or right-hand horizontal orientation without modification. The furnace’s design allows the condensate drain to work in any orientation, and the installer configures the furnace for the specific installation. A multi-positional furnace gives the installer flexibility — the same furnace can go in a basement, an attic, or a crawlspace — but it costs slightly more than a dedicated single-position furnace.

How to Identify Your Furnace’s Airflow Direction

Look at the ductwork. The return duct — the larger duct that carries air back to the furnace, typically with a filter grille or a filter slot near the furnace — connects to one end of the furnace. The supply duct — the duct that carries heated air away from the furnace to the registers — connects to the other end. If the return duct is below the furnace and the supply duct is above, it is an upflow furnace. If the return duct is above and the supply is below, it is a downflow furnace. If the ducts connect to opposite ends of the furnace horizontally, it is a horizontal furnace.

If the ductwork is unclear — both ducts enter the furnace through a large plenum — look for the filter. The filter is always on the return side of the furnace, before the blower. The location of the filter tells you which end is the return. The other end is the supply.

FAQ: Common Questions About Furnace Airflow Direction

Can I convert an upflow furnace to a downflow furnace?

Only if the furnace is listed as multi-positional by the manufacturer. A furnace that is listed only for upflow installation cannot be turned upside down — the heat exchanger is designed to operate in a specific orientation, and turning it upside down can cause overheating, improper combustion, and condensate drainage failure. A multi-positional furnace can be installed in any of the four orientations (upflow, downflow, horizontal-left, horizontal-right) with no modification beyond relocating the condensate drain connections.

Which airflow direction is best for efficiency?

None. The furnace’s AFUE efficiency rating is the same regardless of orientation — an upflow 96% furnace and a downflow 96% furnace burn the same amount of gas per BTU of heat delivered. The airflow direction affects installation cost and complexity, not operating efficiency. The best airflow direction is the one that matches the existing ductwork — replacing a downflow furnace with a downflow furnace is a standard 4- to 8-hour installation. Replacing a downflow furnace with an upflow furnace requires reconfiguring the entire duct system, which costs $3,000 to $6,000 and is almost never justified.

Match the Furnace to the Ductwork, Not the Ductwork to the Furnace

The difference between an upflow and a downflow furnace is the direction air moves through the cabinet — up or down. An upflow furnace goes in a basement. A downflow furnace goes in an attic. A horizontal furnace goes in a crawlspace or a low attic. The furnace’s internal components are the same. Only the orientation is different.

When replacing a furnace, buy the same airflow direction as the existing furnace unless you are also planning a major ductwork renovation. Converting an upflow installation to a downflow installation — or vice versa — requires rebuilding the duct connections at the furnace and possibly relocating the furnace itself. The $3,000 to $6,000 cost of that conversion buys a furnace that is no more efficient than the same model in the original orientation.
